STA F 80/30

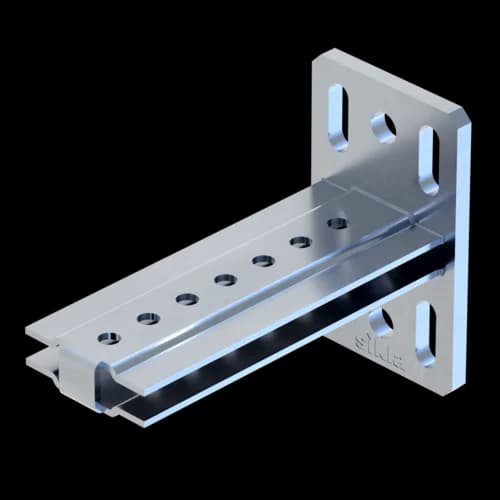

End Support STA F 80/30 HCP
Group: A422
Part number 117160
Plug-in component designed to create an endplate at the open end of a Beam Section TP F80 or a Cantilever Bracket AK F80
Round holes in the base plate allow direct connection to existing cast-in channels

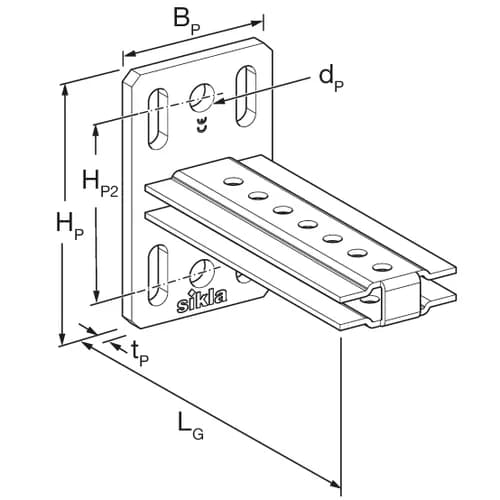

Technical Data
BP | 80 mm |
dP | 14 mm |
HP | 130 mm |
HP2 | 90 mm |
LG | 178 mm |
tP | 8 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Installation
Type STA F 80:
Depending on the version, following mountings solutions are possible:
a) With 2x4 Self Forming Screws FLS when used to connect 2 Beam Sections.
b) With 4 Self Forming Screws FLS applied to the octagonal insert and 2 suitable wall anchors/fixings when connected to the building structure.
The Beam Section TP F 80/80 connected to the End Support STA F 80 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary.
Configuration: Base plate welded to octagonal element F 80
Type STA F 80/30:
Depending on the version, following mountings solutions are possible:
a) With 2x4 Self Forming Screws FLS when used to connect 2 Beam Sections.
b) With 4 Self Forming Screws FLS applied to the insert and 2 suitable M12 wall anchors/fixings when connected to the building structure.
Documents
- siFramo - ETA-24/0471
PDF (2.15MB)
