SA PRO 46-27

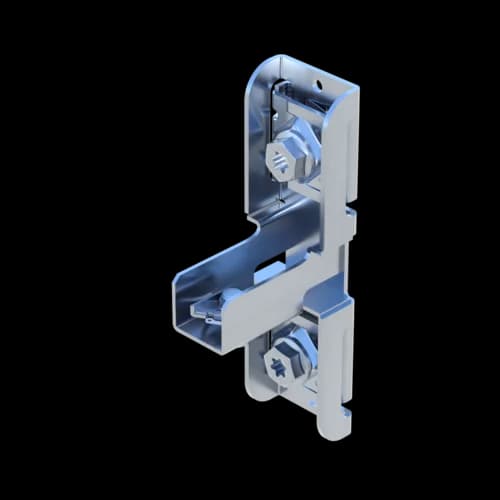

Channel Adapter SA PRO 46-27 HCP
Group: B105
Part number 803541
For integrating lighter constructions within the siMetrix system
Enables profile transition from siMetrix Profile PRO 46 to Pressix CC 41 and 27 channel systems

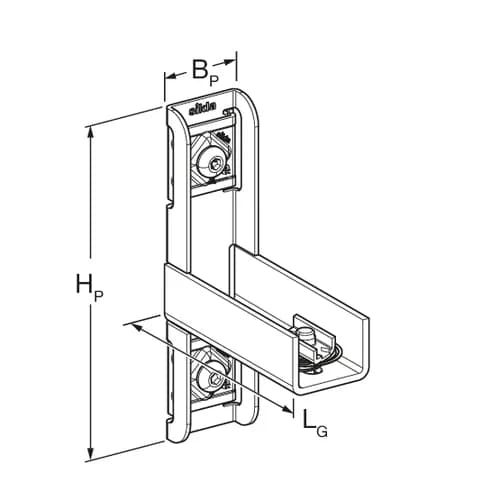

Technical Data
BP | 47 mm |
HP | 170 mm |
LG | 73.5 mm |
Load range
-VX,perm. | 1,08 kN |
VX,perm. | 1,08 kN |
-VY,perm. | 2,91 kN |
VY,perm. | 2,91 kN |
-VZ,perm. | 0,83 kN |
VZ,perm. | 0,83 kN |
-MY,perm. | 0,15 kNm |
MY,perm. | 0,05 kNm |
-MZ,perm. | 0,04 kNm |
MZ,perm. | 0,04 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
CAD
Installation

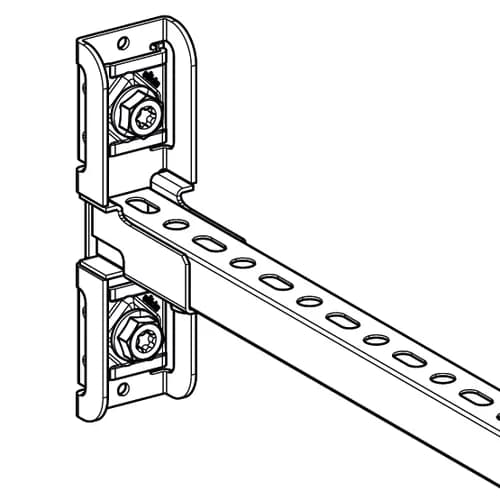

Hook the base plate of the channel adapter into a groove on the side of the profile, press the lock on the opposite side and tighten the screws. Then insert the channel, press it in and tighten it.
Configuration: Base plate welded to U-section
Required tool: T50 Bit or 17 mm (AF) Socket Bit
Tightening torque:
On siMetrix profile: 20 Nm
On siConnect speed nuts SA PRO 46-27: 10 Nm
On siConnect speed nuts SA PRO 46-41: 40 Nm
