AK F 100/160-100-E
Cantilever Bracket AK-E F100/160-F100-1200 HCP
Group: A820
Part number 117146
Galvanised hollow-box section with welded end plate serving as a cantilever arm
Can be used as a crossbar with End Support STA and Self Forming Screws FLS
Types F 100-80 and F 100-80-E allow combination of Beam Section F 100 with F 80/80

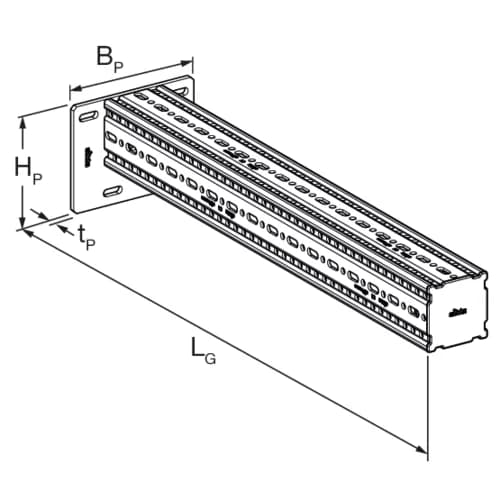

Technical Data
BP | 200 mm |
HP | 160 mm |
LG | 1209 mm |
tP | 8 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Installation
AK-E F 100: With 4 x Self Forming Screw FLS when fixed to another siFramo hollow-box-section. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.
AK-E F 160-100: With 4 x Self Forming Screw FLS when fixed to another siFramo 100/160 (flange side 160) hollow- box- section. Fixing to walls and ceilings with 4 suitable wall anchors M10.
Configuration AK-E F 100 and AK-E F 160-100: Plate welded to Beam Section F 100
Configuration AK-E F 100-80: Plate welded to Beam Section F 80
