TPH F 80
Beam Section Holder TPH F 80 HCP
Group: A425
Part number 195765
Form-fitting, reinforcing bracket for F 80 or F 80/30 Beam Sections
Mounting directly to the building structure or directly to the free-standing or concret-embedded profile

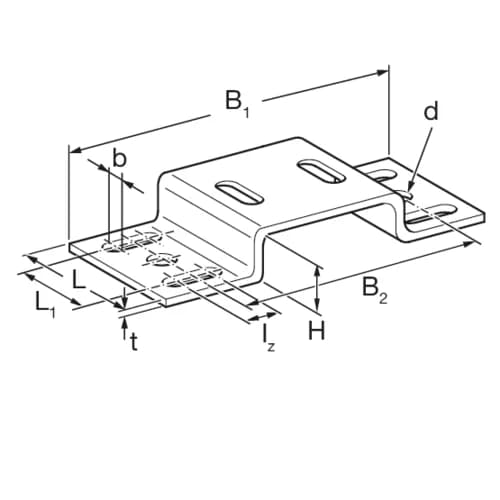

Technical Data
b | 11 mm |
B1 | 181 mm |
B2 | 131 mm |
d | 13 mm |
H | 80 mm |
L | 50 mm |
lz | 20 mm |
t | 4 mm |
Load range
-VX,perm. | 14,40 kN |
VX,perm. | 14,40 kN |
-VY,perm. | 28,10 kN |
VY,perm. | 28,10 kN |
-VZ,perm. | 18,30 kN |
VZ,perm. | 18,30 kN |
-MY,perm. | 1,2 kNm |
MY,perm. | 1,20 kNm |
-MZ,perm. | 1,2 kNm |
MZ,perm. | 1,2 kNm |
The specified load values are permissible loads and contain the partial safety factors γ(M2) = 1,25 (DIN EN 1993-1-8:2010-12, chart 2.1) and γ(G) = 1,35 (DIN EN 1990:2010-12, chart A1.2(B)) for permanent actions.
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
Connecting one Beam Section F80 or F 80/30 90° to another one by using 6 x Self Forming Screw FLS applied through all elongated holes.
Connecting to any other surface or member by using 2 x Self Forming Screws FLS through the two elongated holes on the top of the Beam Section Holder TPH F80 plus 2 appropriate fixing elements up to M12 through the two holes “d1”.
