TKO F 100/160
Beam Bracket TKO F100/160- 800 HCP
Group: A823
Part number 113097
Suitable for single-arm cantilevered mounting on walls, floors, and ceilings
Compatible with steel beams 100 and 120
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
TKO F 100/160
Group: A823
Part number 113097
Suitable for single-arm cantilevered mounting on walls, floors, and ceilings
Compatible with steel beams 100 and 120

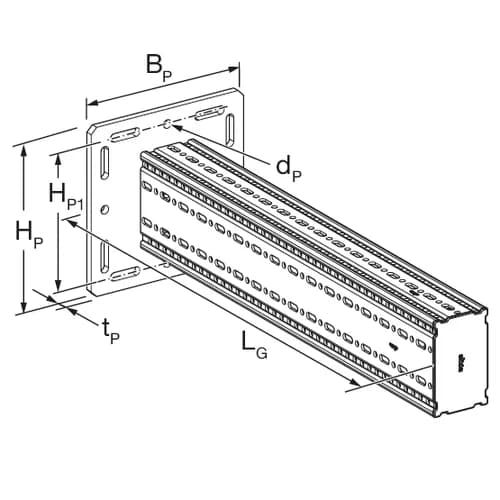

BP | 280 mm |
dP | 14 mm |
HP | 280 mm |
HP1 | 230 mm |
LG | 813 mm |
tP | 12 mm |
-VX,perm. | 124,00 kN |
VX,perm. | 124,00 kN |
-VY,perm. | 67,90 kN |
VY,perm. | 67,90 kN |
-VZ,perm. | 79,20 kN |
VZ,perm. |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
Type TKO F 100:
Depending on the situation, different options are recommended:
a) Directly to building structure: 4 x suitable wall anchors M12
b) To traditional steel beams between 80 – 120 mm flange dimensions: 1x Assembly Set 5P M12 S
c) To traditional steel beams > 120 flange dimension: with on-demand Adaptor Plate AP
d) To Sikla siMotec Steel Beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required
Configuration: Base plate welded to Beam Section F 100
Type TKO F 100/160:
Depending on the situation, different options are recommended:
a) Directly to building structure: 4 x suitable wall anchors M12
b) To traditional steel beams between 100 – 180 mm flange dimensions: 1x Assembly Set 5P M12 S
Configuration: Base plate welded to Beam Section F 100/160
