Product catalogue

Interface element to enable the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120 to primary steel with flange width >120 mm.

Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.

Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.

Element for mounting to floors, ceilings or walls, or for assembling crossbars. Types TKO 120 x 1500, 2000 and 3000 are not suitable for cantilever arrangements.

Multifunctional beam section to create complex substructures and 3D units for a wide range of applications. The beam section is suitable for a wide variety of applications with demanding load situations, e.g. with large spans or heavily loaded frame constructions.

End Cap for clean finish at the ends of TKO 120, QKO 120 and other components based on a HEA 120 steel beam.

In combination with Beam Bracket TKO 120, the End Support enables the construction of crossbars, as well as further conjuctions between building structure and steel construction. By means of oblong holes a simple compensation of structural deviations is possible up to 50 mm.

Support plate for gratings in combination with Sikla components on steel beams. The support plate is clamped to the steel beam and closes the gap between the base plate and the cut-out grating. This creates a fall protection device and eliminates the need for welded upstands on the grating edge.

For suspension of a Guided Pipe Shoe from a siMotec Beam Section 100 resp. 120 or another steel girder with a flange width of 80 up to 120 mm.

Element for vertical assembly on concrete or steel beams, especially for risers. The flange surface is parallel to the base plate and welded on one side with a support plate.

Element for vertical assembly on concrete or steel beams, especially for risers. The support is turned by 90° and thus fixed vertically on the base plate.

In combination with Beam Bracket TKO 120, the T-Adapter permits different T-structures on the floor or hanging T-structures without need of further accessories. Oblong holes permit a simple compensation up to 50 mm on structural situations.

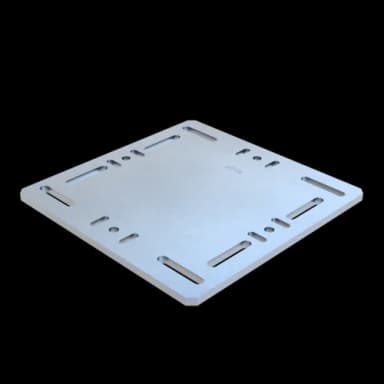

Interface element to enable a welded connection of load chains, spring hangers etc. to Beam Section TP F. Our type 'SPL universal' enables a welded connection to primary steel with flange width up to 300 mm. At the same time it's possible to install type 'SPL universal' to Beam Section TP F if a larger installation surface is needed. The welding plate can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process.
