Structural Elements 100

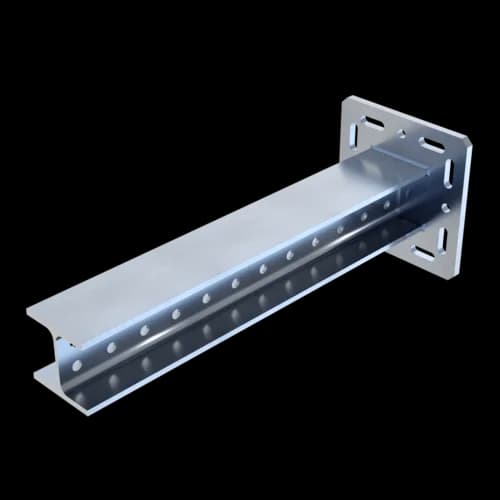

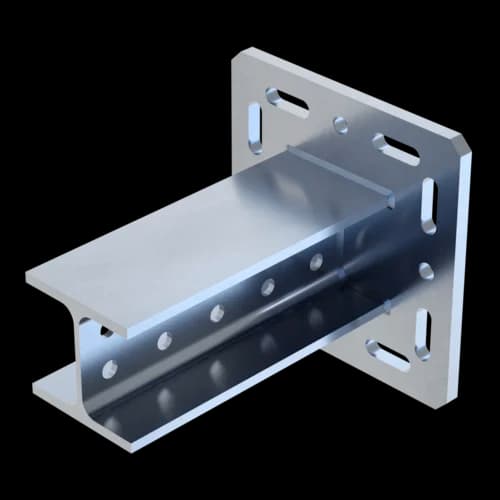

Beam Bracket TKO 100

Application

Element for mounting to floors, ceilings or walls or for assembling crossbars.

Installation

Depending on the situation, different options are recommended:

a)
Fixing to building structure using 4 heavy-duty anchors M12.
b)
Frictional connection to steel beams (flange width 80 - 120 mm) with Assembly Set 5P M12 S.
c)

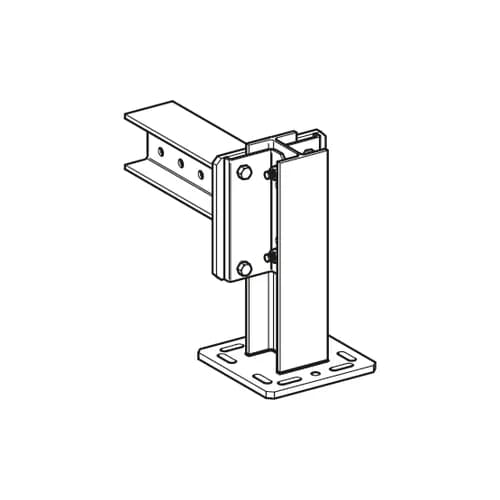

Interlocking connection to other beam brackets TKO 100 or 120 by means of Bracket Plates FV 100/120.

Technical Data

Configuration:
Base plate welded to IPBI 100 beam
Material:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.com/service/downloads)

Declaration of performance Beam Bracket TKO PDF | 41.0 KB

TypeL
[mm]
W
[kg]
Quantity
[pack]
Part
number
TKO 100 x 2502508.51 193099
TKO 100 x 35035010.41 185402
TKO 100 x 40040011.21 185411
TKO 100 x 45045011.91 185420
TKO 100 x 50050012.71 185429
TKO 100 x 55055013.71 185438
TKO 100 x 60060014.21 185447
TKO 100 x 65065015.01 185456
TKO 100 x 70070016.61 185465
TKO 100 x 75075017.21 185474
TKO 100 x 80080017.91 185483
TKO 100 x 85085018.81 185492
TKO 100 x 90090019.61 185501
TKO 100 x 95095020.31 185510
TKO 100 x 1000100021.21 185519
TKO 100 x 1100110022.31 185528
TKO 100 x 1200120025.21 185537
TKO 100 x 1300130025.81 185546
TKO 100 x 1400140028.61 185555
TKO 100 x 1500150030.11 185564
TKO 100 x 2000200039.01 185573
