Interface element to enable the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120 to primary steel with flange width >120 mm.

An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Beam System 100 and steel beams up to a flange width of 100 mm. It is connected using the Assembly Set MS 5P, and the height is adjusted via the Threaded Tube 1/2'.

An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the 100 beam system and steel beams up to a flange width of 100 mm. It is connected using the Assembly Set MS 5P, and the height is adjusted via the Threaded Tube ½”.

Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.

Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.

For the production of a cross-bracing within the Simotec beam systems 100 and 120. Connection to the primary steel structure with a flange width of up to 310 mm is also possible. According to the flange width select a suitable type.

Element for mounting to floors, ceilings or walls or for assembling crossbars.

Multifunctional beam section to create complex substructures and 3D units for a wide range of applications. The beam section is suitable for a wide variety of applications with demanding load situations, e.g. with large spans or heavily loaded frame constructions.

Beam Bracket suitable as support for horizontal structures or as reinforcement of bearing constructions on site.

For safe interlocking connection of a Beam Bracket or an End Support STA to other Beam Brackets TKO (adjustment as per grid with 25 or 50 mm).

End Cap for clean finish at the ends of TKO 100, QKO 100 and other components based on a HEA 100 steel beam.

In connection with Beam Bracket TKO 100, the End Support STA 100 enables the construction of crossbars, as well as further conjuctions between building structure and steel construction. By means of the slotted holes a simple compensation of structural deviations is possible up to 50 mm.

Support plate for gratings in combination with Sikla components on steel beams. The support plate is clamped to the steel beam and closes the gap between the base plate and the cut-out grating. This creates a fall protection device and eliminates the need for welded upstands on the grating edge.

For suspension of a Guided Pipe Shoe from a siMotec Beam Section 100 resp. 120 or another steel girder with a flange width of 80 up to 120 mm.

Element for vertical assembly on concrete or steel beams, especially for risers. The flange surface is parallel to the base plate and welded on one side with a support plate.

Element for vertical assembly on concrete or steel beams, especially for risers. The support is turned by 90° and thus fixed vertically on the base plate.

Attachment component to connect Beam Section TP F 100 or Channel MS.

In combination with Beam Bracket TKO 100, the T-Adapter allows different T-structures on the floor or hanging T-structures without need of further accessories. Oblong holes permit a simple compensation up to 50 mm on structural situations.

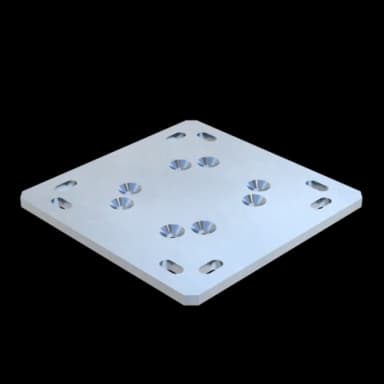

The wall adapter plate serves as a base plate for the connection of a steel beam of the Simotec beam systems 100 and 120 to a concrete wall.

The wall adapter plate serves as a base plate for the connection of a steel beam of the Simotec beam systems 100 and 120 to a concrete wall.

Interface element to enable a welded connection of load chains, spring hangers etc. to Beam Section TP F. Our type 'SPL universal' enables a welded connection to primary steel with flange width up to 300 mm. At the same time it's possible to install type 'SPL universal' to Beam Section TP F if a larger installation surface is needed. The welding plate can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process.
